PELAMIS REEFER FLEET


MV Southern Sun


MV Southern


MV Southern

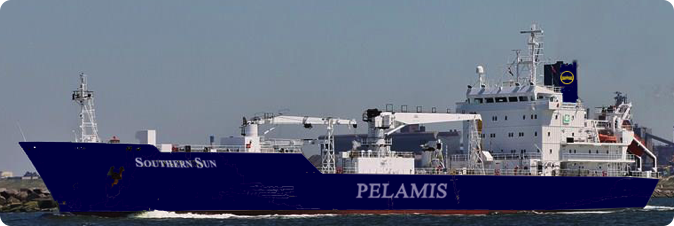

MV SOUTHERN SUN

Tonnage/capacities

Cubic:                              375.723 cbft

Sqm u. deck:                       4.495 sqm

DWAT:                                7,721 mt

GT:                                      7.743 mt

NT:                                      3,726 mt

___________________________________

Main particulars

Built:                                  1991-1992

LOA:                                  131.25 m

Beam:                                   19.60 m

Draught:                                 8.87 m

Main E.                              11.012 bhp

___________________________________

Cargo

Frozen Fish (-30’C):            5,900-ton

HOLD 1:                              1,500-ton

HOLD 2:                               2,200-ton

HOLD 3:                               2,200-ton


Live Seafood:

HOLD 1:                                   50-ton / 80-tank

HOLD 2:                                     0

HOLD 3:                           120-ton / 160-tank


Frozen Fish (-60’C):               780-ton

FEU DECK:                             26


Chilled Product:

TEU DECK:                              54

___________________________________

Tank capacity

1,086 mt IFO 380 RMG 35

126 mt MDO DMB

___________________________________

Holds/Hatches/Compartments

3/3/12

All hatches to all holds/compartments have

free opening of minimum 8.1 x 4.7 m

___________________________________

Ventilation/temperatures

Air changes per hour:    90

Air renewal per hour:    2.4

7 seperate cooling sections, with sufficient

compressor capacity for keeping -30 to +15

degrees Celsius.

___________________________________

Cranes

Cranes:                1x 17/34 mt

Pallet cranes:        3x 8 mt

___________________________________

Speed and consumption

Speed laden:        art 19.7 knots

Consumption main:    abt 29.5 mt/day

                                    IFO 380 RMG 35

Consumption aux:        abt 2.5 - 4.5 mt/day

                                    IFO 380 RMG 35

___________________________________

PELAMIS SHIPPING

Pelamis Shipping is a division of the Pelamis Group that manages the shipping assets for the operations of the Fishing and Logistics Divisions. Pelamis Shipping is a ship owner, with an expanding fleet of Refrigerated Cargo Carriers, Freezer Long-Line Fishing and Purse Seiner Fishing Vessels.


The Refrigerated Carriers are primarily supportive of the Groups fishing activities in the Southern Skipjack Tuna and the Western Tuna Fisheries. Operating at the height of the fishing season regular bi-weekly freight runs from Southern Australia to Thailand, Singapore and Indonesia. While the Fishing vessels are used in the catching of the Groups Tuna Quota.


The Refrigerated Carriers are all sister ships of similar design and capacity. They each have the capacity to carry frozen fish at -30’C in bulk or -60’C in deck containers, as well as chilled product palletised, or in deck reefers.


It is proposed to fit two vessels with live self-contained seawater holding tanks, to give a one hundred and fifty ton (150-ton) capacity.
